Product Overviewe

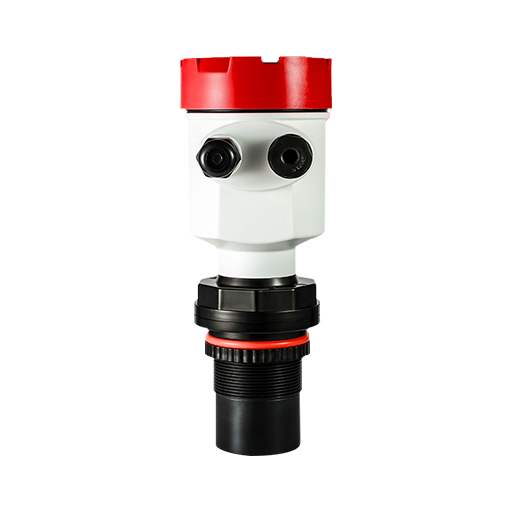

The four – wire ultrasonic level gauge is a non – contact liquid (material) level measuring instrument, consisting of an ultrasonic probe and an ultrasonic control host. This product adopts a modular circuit design, with a military – quality multi – layer PCB board. The hardware structure is compact and the layout is reasonable.
This product features a 16 – key operation menu, supports isolated 4 – 20mA output, HART communication, and has built – in wireless data transmission functions such as GPRS/GPS/4G. The device has an internal storage capacity of 500,000 records, supports data export via USB, and can also add modules to achieve other functions according to customer requirements.
This product can meet most liquid level and material level measurement requirements without coming into contact with industrial media, completely solving the disadvantages of traditional measurement methods such as entanglement, blockage, leakage, medium corrosion, and inconvenient maintenance of pressure – type, capacitive, and float – type gauges. Therefore, it can be widely applied in various fields related to material level and liquid level monitoring and control.

Product Features

LCD liquid crystal display.
Switch between Chinese and English menus.
Select material level or liquid level mode.
Arbitrary setting of output range start – point and end – point.
Customize HART communication.
Restore settings function, supporting factory – reset.
Digital filtering, dynamic echo recognition.

Selection Parameters

超声波液位计-二线制（A型/B型/防爆型） Ultrasonic level gauge – two – wire system (Type A/Type B/Explosion – proof type)
测量范围  Measurement range	0-15m
仪表显示  Instrument display	LCD显示 /  LCD display
输出信号  Output signal	4～20mA、RS485、Modbus
测距分辨率  Ranging resolution	1mm
测距精度  Ranging accuracy	±0.25%-5%
供电电压  Supply voltage	DC24V/AC220V
防护等级  Protection level	IP65-IP67
设备盲区 Blind zone	0.4m
设备功耗  Power consumption	<0.6W
电气接口  Electrical interface	M16*1.5
设备螺纹  Equipment Thread	G2
工作环境  Working environment	—20℃～+60℃
防爆型  Explosion – proof type	可定制防爆型号  /  Customize explosion – proof models

超声波液位计-四线制（A型/B型/防爆型） Ultrasonic Level Gauge – Four – wire System (Type A/Type B/Explosion – proof Type)
测量范围  Measurement range	0-15m
仪表显示  Instrument display	LCD显示 LCD display
输出信号  Output signal	4～20mA、RS485、Modbus
测距分辨率  Ranging resolution	1mm
测距精度  Ranging accuracy	±0.3%
供电电压  Supply voltage	DC24V/AC220V
防护等级  Protection level	IP65-IP67
设备盲区 Blind zone	0.25m～0.6m
设备功耗  Power consumption	<0.6W
电气接口  Electrical interface	M16*1.5
设备螺纹  Equipment Thread	G2
工作环境  Working environment	—20℃～+60℃
防爆型  Explosion – proof type	可定制防爆型号  Customize explosion – proof models

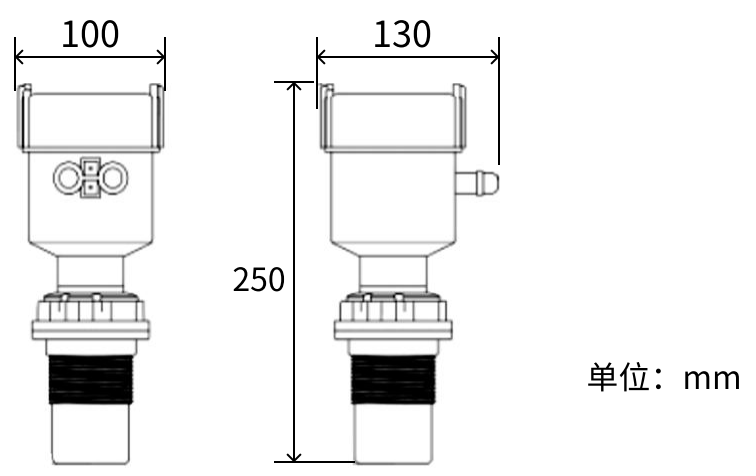

Instrument external dimensions

The probe size may vary depending on the instrument range. If there are any differences, you will be informed in advance.

Installation Method

In an open environment, it is common to use a bracket for installation, fixing the instrument with the built – in flange. Cut a circular hole, slightly larger than the probe diameter (60mm), at the installation site of the pond or tank. Insert the instrument and then tighten the flange from bottom to top. The installation must ensure that the probe surface of the instrument is parallel to the measured liquid level.
